Add Wizard component, composable multi-step flows

[pedromenezes1]

Adds a Wizard to Kumo, a fullscreen, multi-step flow built as a single composable compound component.

what's included:

• compound API — Wizard.Fullscreen/Wizard.Grid/Wizard/Wizard.Sidebar/Wizard.Steps/Wizard.Step/Wizard.Page/Wizard.CloseButton, plus useWizard and useWizardGrid hooks
• non-linear step navigation via goToStep and a declarative when prop, so steps can branch rather than only go linear next/back
• controlled (step + onStepChange) and uncontrolled (defaultStep) modes
• fullscreen overlay with scroll lock, esc to dismiss, and a close button
• optional left-side title (via Wizard.Grid title) and composable right-side step indicator via Wizard.Sidebar
• optional decorative wireframe grid
• width on Wizard.Fullscreen — controls the card max-width ("narrow" / "wide")
• optional header on Wizard.Fullscreen — renders arbitrary top chrome; its height is measured and subtracted from the layout
• Wizard.CloseButton — close button for custom header placement; throws outside Wizard.Fullscreen
• useWizard().close() — programmatically closes the wizard by delegating to Wizard.Fullscreen's onClose
• previousStepNavigation — disables implicit go-back affordances (card click, sidebar click) while keeping explicit back()
• short-viewport handling — when vertical space is tight, the fixed top/bottom offsets lift so the LayerCard uses the space that's left instead of shrinking too hard
• i18n-ready — the aria-labels are overridable via labels props

usage:

import { Wizard, useWizard, useWizardGrid } from "@cloudflare/kumo";

function CreateWorker({ open, onClose }) {
  const { gridProps, onActiveStepElementChange } = useWizardGrid();

  return (
    <Wizard.Fullscreen open={open} onClose={onClose}>
      <Wizard.Grid title="Create a Worker" {...gridProps}>
        <Wizard onActiveStepElementChange={onActiveStepElementChange}>
          <Wizard.Sidebar />
          <Wizard.Steps>
            <Wizard.Step stepKey="method" label="Select a method">
              <Wizard.Page title="Ship something new" footer={<Footer />}>
                {/* ... */}
              </Wizard.Page>
            </Wizard.Step>
            {/* ...more steps */}
          </Wizard.Steps>
        </Wizard>
      </Wizard.Grid>
    </Wizard.Fullscreen>
  );
}

// the step footer reads navigation from useWizard()
function Footer() {
  const { back, next, isFirstStep } = useWizard();
  // ...
}

---

• Reviews
  • bonk has reviewed the change
  • automated review not possible because:
• Tests
  • Tests included/updated
  • Automated tests not possible - manual testing has been completed as follows:
  • Additional testing not necessary because:

[pkg-pr-new]

npm i https://pkg.pr.new/@cloudflare/kumo@559

commit: 231c033

[github-actions]

Docs Preview

View docs preview

Commit: d5914b5

[github-actions]

Visual Regression Report — 25 changed, 15 unchanged

25 screenshot(s) with visual changes:

Button / Variant: Secondary

161 px (0.16%) changed

Before	After	Diff

Button / Variant: Ghost

175 px (0.17%) changed

Before	After	Diff

Button / Variant: Destructive

278 px (0.27%) changed

Before	After	Diff

Button / Icon Only

110 px (0.11%) changed

Before	After	Diff

Button / Loading State

1 px (0%) changed

Before	After	Diff

Dialog / Dialog With Actions

200 px (0.2%) changed

Before	After	Diff

Dialog / Dialog Basic

259 px (0.26%) changed

Before	After	Diff

Dialog / Dialog Confirmation

707 px (0.7%) changed

Before	After	Diff

Dialog / Custom Max Width

515 px (0.51%) changed

Before	After	Diff

Dialog / Dialog With Select

225 px (0.22%) changed

Before	After	Diff

Dialog / Dialog With Combobox

225 px (0.22%) changed

Before	After	Diff

Dialog / Dialog With Dropdown

130 px (0.13%) changed

Before	After	Diff

Dialog (Open)

0 px (0%) changed

Before	After	Diff

Select / Select Basic

300 px (0.3%) changed

Before	After	Diff

Select / Select Sizes

869 px (0.47%) changed

Before	After	Diff

Select / Select Without Label

105 px (0.1%) changed

Before	After	Diff

Select / Select With Description

1,213 px (1.02%) changed

Before	After	Diff

Select / Select With Error

1,730 px (1.46%) changed

Before	After	Diff

Select / Select Placeholder

418 px (0.41%) changed

Before	After	Diff

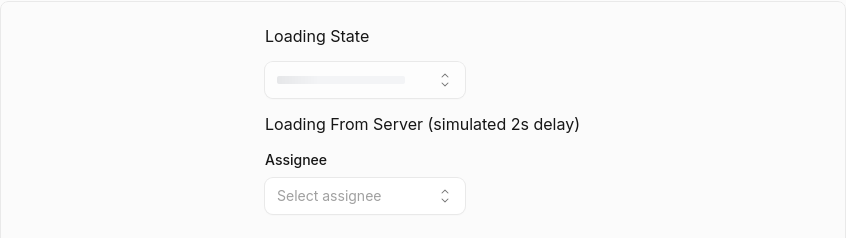

Select / Select Loading

0 px (0%) changed

Before	After	Diff

Select / Select Multiple

851 px (0.84%) changed

Before	After	Diff

Select / Select Complex

1,093 px (0.92%) changed

Before	After	Diff

Select / Select Disabled Items

176 px (0.17%) changed

Before	After	Diff

Select / Select Long List

1,572 px (1.33%) changed

Before	After	Diff

Select (Open)

3,038 px (0.01%) changed

Before	After	Diff

15 screenshot(s) unchanged

• Button / Basic
• Button / Variant: Primary
• Button / Variant: Outline
• Button / Variant: Secondary Destructive
• Button / Sizes
• Button / With Icon
• Button / Disabled State
• Button / Title
• Button / Link as Button
• Dialog / Dialog Alert
• Select / Select With Tooltip
• Select / Select Custom Rendering
• Select / Select Disabled Options
• Select / Select Grouped
• Select / Select Grouped With Disabled

---

Generated by Kumo Visual Regression

[pedromenezes1]

/bonk

[ask-bonk]

PR #559: Add Wizard component by pedromenezes1

Summary: Introduces a new Wizard compound component for building fullscreen, composable multi-step flows in Kumo.

What's added:

• 25 files (+5,242 / −125 lines)
• Compound API: Wizard.Fullscreen, Wizard.Grid, Wizard, Wizard.Steps, Wizard.Step, Wizard.Page, plus useWizard and useWizardGrid hooks
• Features: non-linear step navigation via goToStep and a declarative when prop, fullscreen overlay with scroll lock/ESC-to-dismiss, optional sidebar step indicator, decorative wireframe grid, short-viewport handling, and i18n-ready aria labels
• Includes docs page, demo components, and 1,663 lines of tests
• Changeset included

CI / Automation:

• 📦 pkg-pr-new preview available: npm i https://pkg.pr.new/@cloudflare/kumo@559
• 📖 Docs preview: available here
• 🖼️ Visual regression: 10 changed screenshots (Button, Dialog, Select variants), 29 unchanged — pixel diffs are minor (0–1.46%), likely from shared layout/style shifts rather than intentional visual changes

PR checklist: Author marked "Tests included/updated" as complete. Awaiting review.

github run

[pedromenezes1]

/bonk

[ask-bonk]

PR #559: Add Wizard component, composable multi-step flows by pedromenezes1

Overview: Introduces a new Wizard compound component for building fullscreen, composable multi-step flows in Kumo.

What's added:

• Compound API: Wizard.Fullscreen, Wizard.Grid, Wizard, Wizard.Steps, Wizard.Step, Wizard.Page, Wizard.Sidebar, Wizard.CloseButton, plus useWizard and useWizardGrid hooks
• Features: Non-linear step navigation via goToStep and a declarative when prop; controlled (step + onStepChange) and uncontrolled (defaultStep) modes; fullscreen overlay with scroll lock, ESC-to-dismiss, and close button; optional left-side title and right-side step indicator; decorative wireframe grid; short-viewport handling; i18n-ready aria labels
• Code: 25 new files, +6,329 / −125 lines across 30 files, including 2,176 lines of tests and a changeset
• Docs: New wizard docs page, demo components, and registry updates

CI / Automation:

• 📦 pkg-pr-new preview: npm i https://pkg.pr.new/@cloudflare/kumo@559
• 📖 Docs preview: available here
• 🖼️ Visual regression: 24 changed, 15 unchanged — minor pixel diffs (0–1.67%) on Button, Dialog, and Select variants, likely from shared layout/style shifts rather than intentional visual changes

Status: Author marked "Tests included/updated" as complete. Awaiting review.
