fix(web): separate image attachments from message text

[maria-rcks]

What changed

• Render normal user image attachments in a dedicated component above the text bubble.
• Omit the text bubble entirely for attachment-only messages.
• Hide the provider-facing image-only fallback prompt from the timeline.
• Use familiar count-specific gallery layouts: two equal squares, one large square with two stacked squares for three images, and a balanced 2×2 square grid for larger sets.
• Collapse sets larger than four behind a +N overlay while keeping every attachment available in the image lightbox.

Why

Images were rendered inside the same padded message box as text, and image-only turns exposed an internal provider instruction as user-authored content. Larger attachment sets also consumed unnecessary vertical space and flattened every preview into the same shallow proportion.

Impact

Images and captions now have clear visual separation, image-only turns show only their attachments, and larger sets remain compact without losing access to any image. The gallery changes with image count while keeping square crops and a balanced outer shape. This applies to the web client and the desktop app that wraps it; mobile does not use this web timeline.

Screenshots

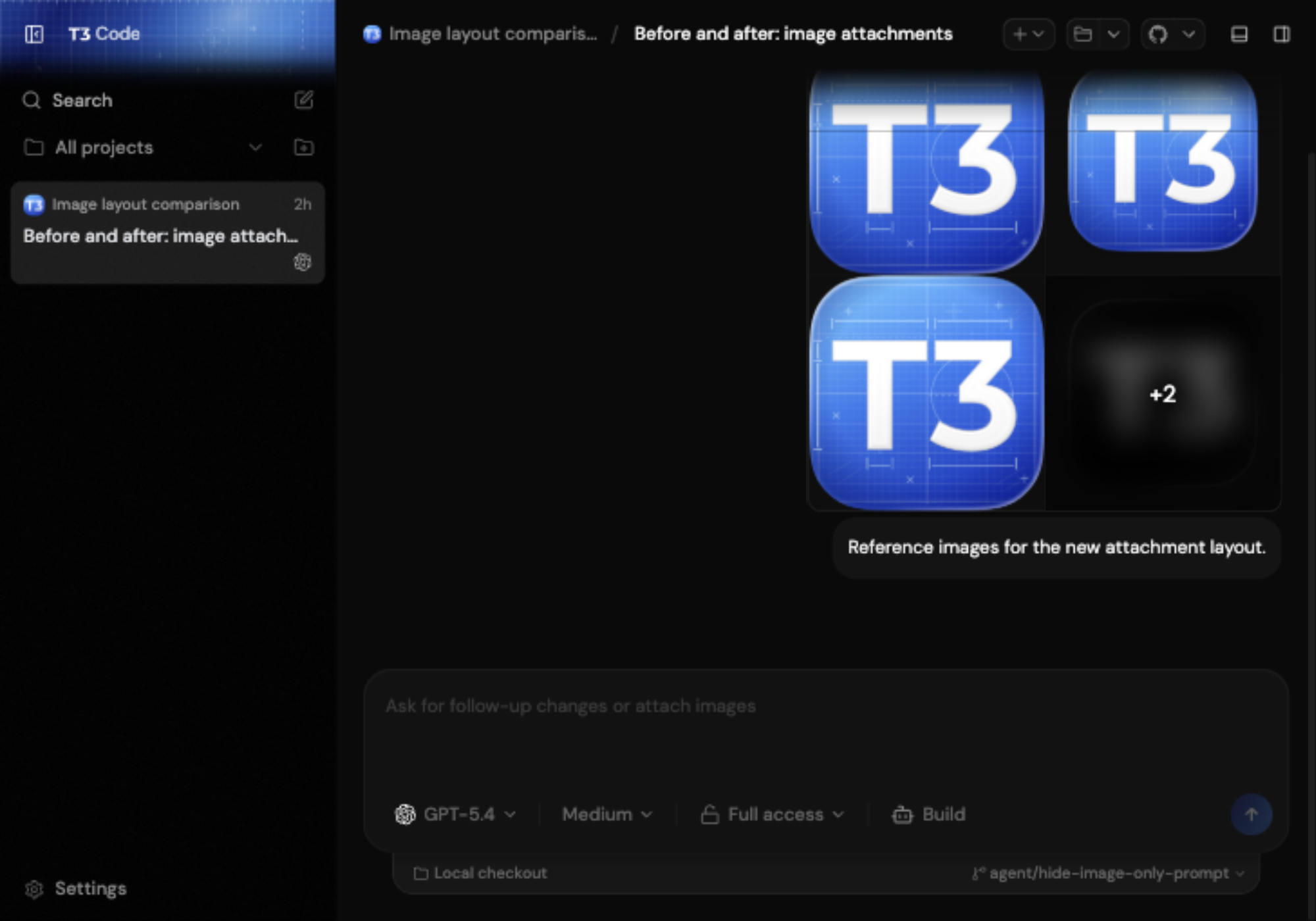

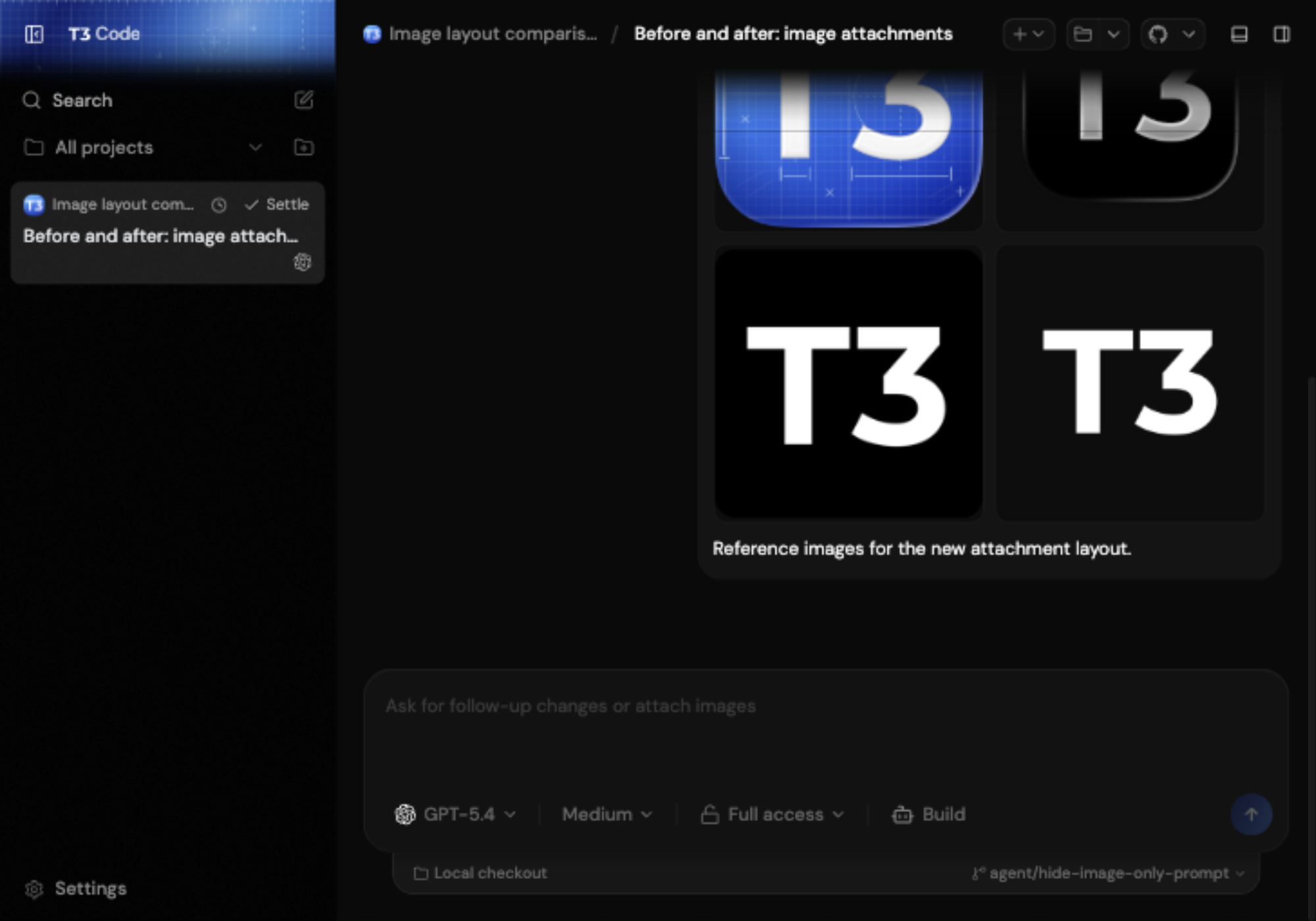

Before	After

Validation

• vp test run apps/web/src/components/chat/MessagesTimeline.test.tsx — 18 tests passed
• vp run typecheck from apps/web
• vp lint on the changed files
• Visually verified the balanced gallery against the isolated PR fixture at a 1000×700 viewport

Generated with GPT-5.6 Sol via the Codex harness.

[coderabbitai]

Important

Review skipped

Auto reviews are disabled on this repository. Please check the settings in the CodeRabbit UI or the .coderabbit.yaml file in this repository. To trigger a single review, invoke the @coderabbitai review command.

⚙️ Run configuration

Configuration used: Repository UI

Review profile: CHILL

Plan: Pro Plus

Run ID: 29a4165c-3ca4-4bd3-83c6-34289287a9c0

You can disable this status message by setting the reviews.review_status to false in the CodeRabbit configuration file.

Use the checkbox below for a quick retry:

• 🔍 Trigger review

---

Thanks for using CodeRabbit! It's free for OSS, and your support helps us grow. If you like it, consider giving us a shout-out.

❤️ Share

• X
• Mastodon
• Reddit
• LinkedIn

_{Comment @coderabbitai help to get the list of available commands.}

[macroscopeapp]

🟡 Medium lib/userMessage.ts:1

resolveUserMessageDisplayText hides a user's message by returning "" whenever the trimmed text exactly equals IMAGE_ONLY_BOOTSTRAP_PROMPT (or its Ultrathink: variant). A user who intentionally types this sentence alongside an image attachment will have their message silently replaced with an empty display string, losing their genuine caption. This happens because the function uses a user-readable prompt string as the sole sentinel to distinguish generated fallback text from user-authored text. Consider using a collision-resistant internal marker or persisted metadata instead, so genuine user input is never mistaken for a synthetic bootstrap prompt.

🤖 Copy this AI Prompt to have your agent fix this:

In file @apps/web/src/lib/userMessage.ts around line 1:

`resolveUserMessageDisplayText` hides a user's message by returning `""` whenever the trimmed text exactly equals `IMAGE_ONLY_BOOTSTRAP_PROMPT` (or its `Ultrathink:` variant). A user who intentionally types this sentence alongside an image attachment will have their message silently replaced with an empty display string, losing their genuine caption. This happens because the function uses a user-readable prompt string as the sole sentinel to distinguish generated fallback text from user-authored text. Consider using a collision-resistant internal marker or persisted metadata instead, so genuine user input is never mistaken for a synthetic bootstrap prompt.

[macroscopeapp]

🟠 High chat/UserMessageAttachments.tsx:38

With more than four attachments, if the fourth item has no previewUrl, the +N collapsed-tile overlay and click target are not rendered — they exist only inside the image.previewUrl branch. Previewable attachments after index 3 are hidden by slice(0, MAX_VISIBLE_IMAGES), so with four non-previewable files followed by a previewable image, the image becomes completely inaccessible. Render the collapsed overlay and expand action independently of whether the fourth item itself has a preview URL (for example, by selecting a previewable image for that tile).

🤖 Copy this AI Prompt to have your agent fix this:

In file @apps/web/src/components/chat/UserMessageAttachments.tsx around line 38:

With more than four attachments, if the fourth item has no `previewUrl`, the `+N` collapsed-tile overlay and click target are not rendered — they exist only inside the `image.previewUrl` branch. Previewable attachments after index 3 are hidden by `slice(0, MAX_VISIBLE_IMAGES)`, so with four non-previewable files followed by a previewable image, the image becomes completely inaccessible. Render the collapsed overlay and expand action independently of whether the fourth item itself has a preview URL (for example, by selecting a previewable image for that tile).

[macroscopeapp]

🟠 High chat/UserMessageAttachments.tsx:58

Overflow attachments without a previewUrl are permanently inaccessible. When there are more than four images, the last visible tile shows +N, but buildExpandedImagePreview filters out any attachment lacking a previewUrl. If an overflowed attachment has no preview URL, it never appears in the expanded gallery, so its fallback name is never shown and there is no way to see it. Consider passing the full props.images array (including non-previewable items) to the expanded preview, or surfacing non-previewable overflow attachments by name outside the image gallery.

🤖 Copy this AI Prompt to have your agent fix this:

In file @apps/web/src/components/chat/UserMessageAttachments.tsx around line 58:

Overflow attachments without a `previewUrl` are permanently inaccessible. When there are more than four images, the last visible tile shows `+N`, but `buildExpandedImagePreview` filters out any attachment lacking a `previewUrl`. If an overflowed attachment has no preview URL, it never appears in the expanded gallery, so its fallback name is never shown and there is no way to see it. Consider passing the full `props.images` array (including non-previewable items) to the expanded preview, or surfacing non-previewable overflow attachments by name outside the image gallery.
